New Artnet Ethernet to SPI/DMX pixel led light controller BC 216 DC5V 24V 3Ax16CH Support Artnet/Artnet and sACN E.1.31 protocol
  • Selleren.newsfit.info
  • Price ofUS$282.66-333.88
  • Your PriceUS $209.17 - 247.07
  • ShippingFree Shipping
  • Discount% off
  • Ratings4.5 (206)

Image Details

New Artnet Ethernet to SPI/DMX pixel led light controller BC 216 DC5V 24V 3Ax16CH Support Artnet/Artnet and sACN E.1.31 protocol - 1New Artnet Ethernet to SPI/DMX pixel led light controller BC 216 DC5V 24V 3Ax16CH Support Artnet/Artnet and sACN E.1.31 protocol - 2New Artnet Ethernet to SPI/DMX pixel led light controller BC 216 DC5V 24V 3Ax16CH Support Artnet/Artnet and sACN E.1.31 protocol - 3New Artnet Ethernet to SPI/DMX pixel led light controller BC 216 DC5V 24V 3Ax16CH Support Artnet/Artnet and sACN E.1.31 protocol - 4New Artnet Ethernet to SPI/DMX pixel led light controller BC 216 DC5V 24V 3Ax16CH Support Artnet/Artnet and sACN E.1.31 protocol - 5New Artnet Ethernet to SPI/DMX pixel led light controller BC 216 DC5V 24V 3Ax16CH Support Artnet/Artnet and sACN E.1.31 protocol - 6

Product Details

dianxiaobao
dianxiaobaodianxiaobaodianxiaobaodianxiaobao
dianxiaobaodianxiaobaodianxiaobaodianxiaobao
dianxiaobaodianxiaobaodianxiaobaodianxiaobao

dianxiaobao



Specifications:

Model:    BC-216
Working Voltage :DC5-DC24V
Output Current: 3A X 16CH(Built-in 5A fuse)
Input Ethernet control protocol: ArtNet

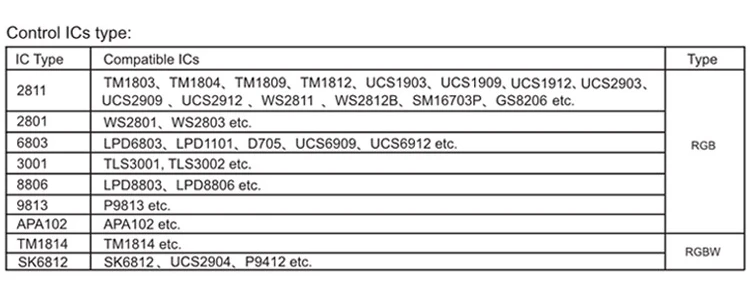

Output Control IC: 2811/2801/6803/3001/8806/APA102/9813/TM1814/SK6812 Series
Control Pixels: RGB:340 Pixels X16CH   RGBW:256 Pixels X16CH
Output DMX512: Two port(2X512 Channels)
Working Temp : -20~55℃
Product Dimension : L258×W145×H41(mm)
Weight(G.W): 1100g

IC类型

This Ethernet-SPI/DMX pixel light controller is dedicated to converting the Ethernet signal into SPI pixel signal, which is designed for large project with high-density pixel light, such as matrix panel lights, construction's contour lamp, etc. Besides converting Ethernet-based control protocols into various LED driving IC signal, it also outputs DMX512 signal at the same time, convenient for the connection of different types of led lamp, and to achieve the unified control of all kinds of led lamp in the same project.



Basic Features:

1. With LCD display and built-in WEB SERVER setting interface, easy operation.

2. Support Ethernet DMX protocol ArtNet, can be expanded to other protocols.

3. Multi SPI (TTL) signal output, up to 5440 pixels control.

4. Output DMX512 signal at the same time, convenient for the connection of different types led lamp.

5. Support various LED driving IC, flexible control.

6. Support online firmware upgrade.

7. Adopt DIP plug-in design for the easily-worn parts, Users can repair the damage caused by wrong wiring or short circuit.

8. Built-in test mode, using a network interface with indicator light, work status is clear when at a glance.





V1 V2 750

主图4主图6

Note:

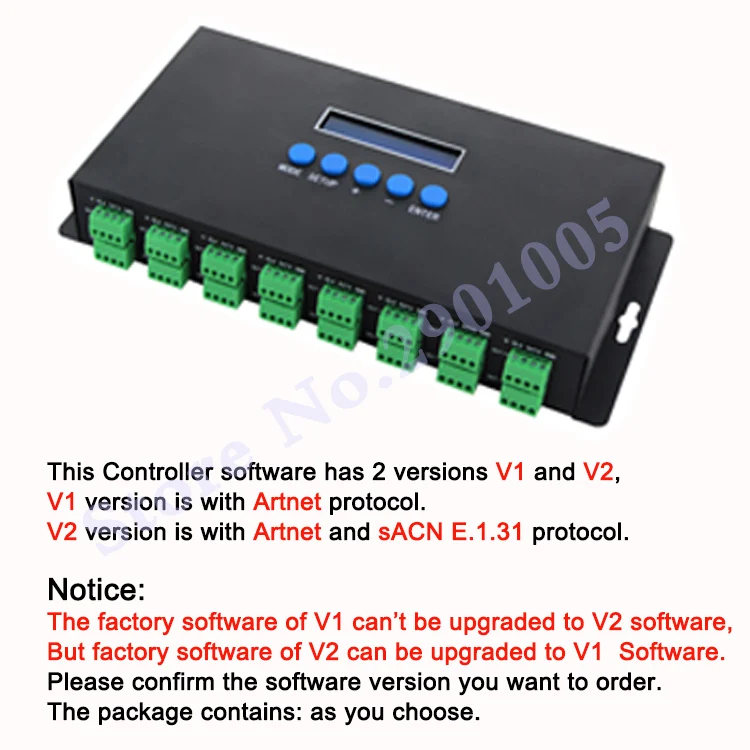

The software of this controller is divided into two versions, V1 and V2.
The V2 version of the controller is more expensive than the V1.
The V1 version only has the ArtNet protocol.
The V2 version includes two protocols, ArtNet and sACN E1.31.
pay attention:
The V1 factory program cannot be upgraded to the V2 program.

But the V2 factory program can be upgraded to V1 program.





Instruction manual:

12345678详情1



V1 V2 750

主图4主图6
